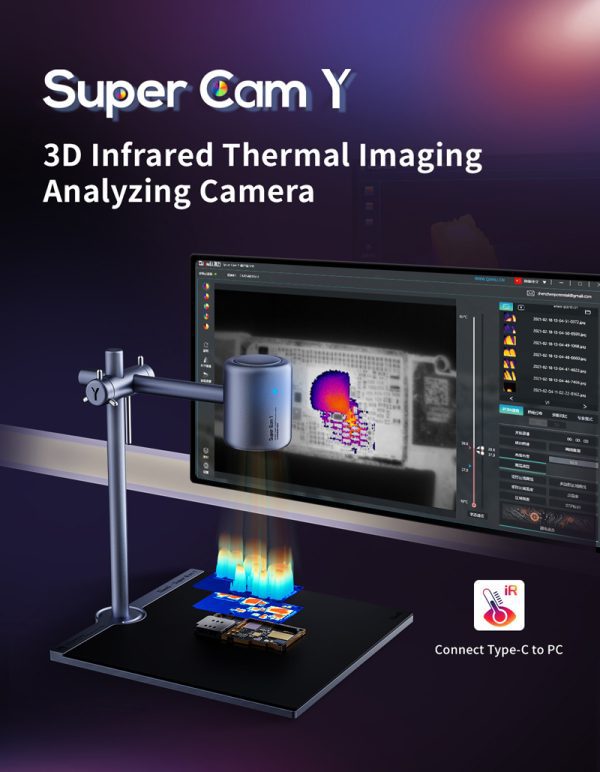

QIANLI SUPER CAM Y
Sale!16%
Adjusted lens, specially designed for motherboard inspection and maintenance, 256 x192 resolution, 80~180mm range focal length

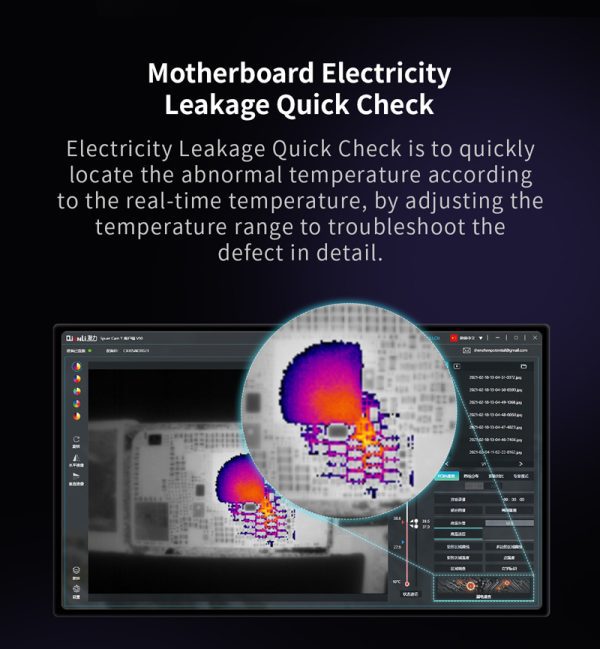

Electricity Leakage Quick Check is to quickly locate the abnormal temperature according to the real-time temperature, by adjusting the temperature range to troubleshoot the defect in detail

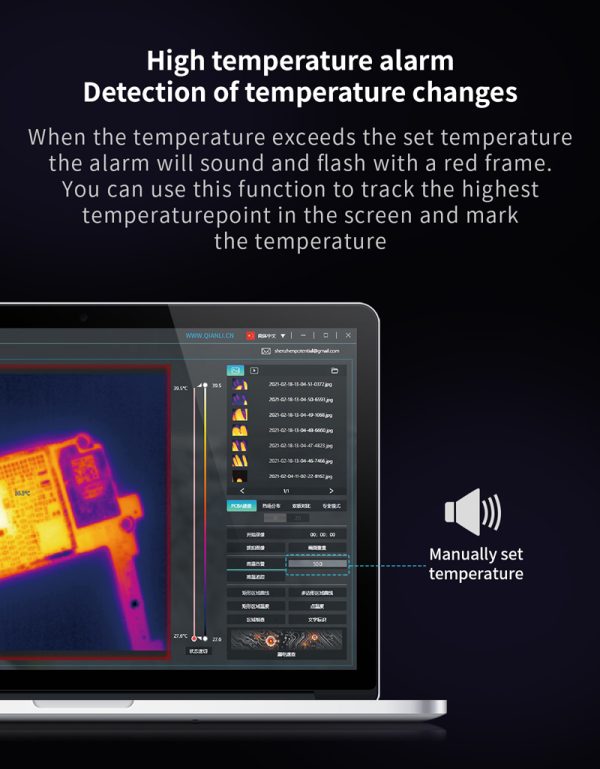

When the temperature exceeds the set temperature the alarm will sound and flash with a red frame.
You can use this function to track the highest temperature point on the screen and mark the temperature

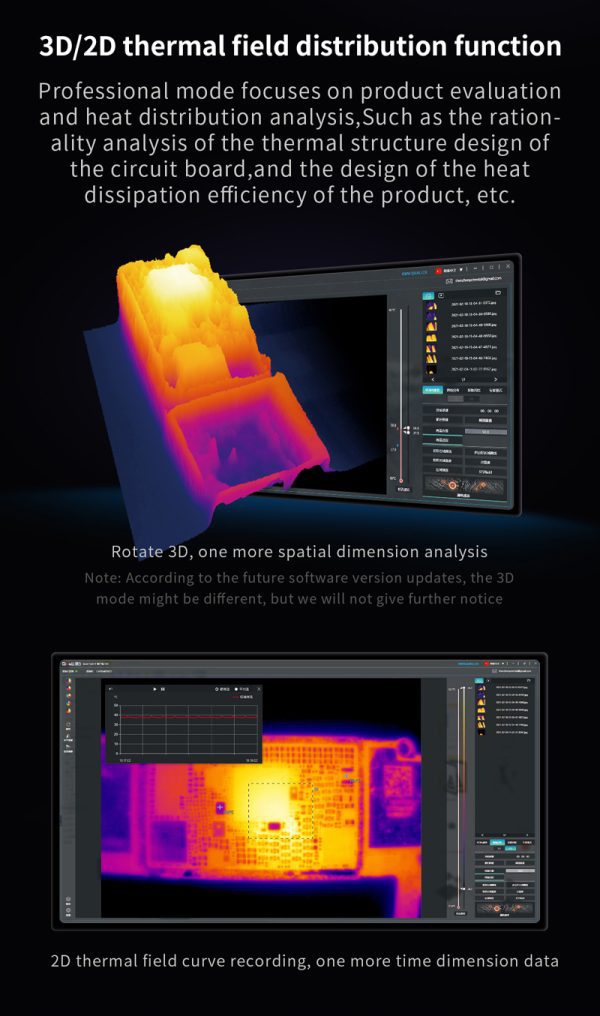

Professional mode focuses on product evaluation and heat distribution analysis, such as the rationality analysis of the thermal structure design of the circuit board, and the design of the heat dissipation efficiency of the product, etc
Rotate 3D, one more spatial dimension analysis, 2D thermal field curve recording, one more time dimension data

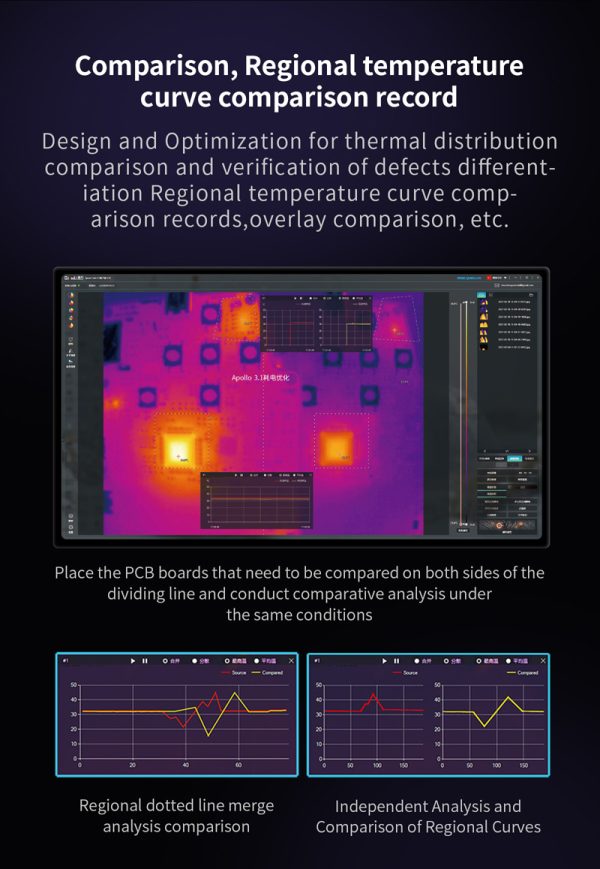

Design and Optimization for thermal distribution comparison and verification of defects differentiation Regional temperature curve comparison records, overlay comparison, etc
Place the PCB boards that need to be compared on both sides of the dividing line and conduct a comparative analysis under the same conditions

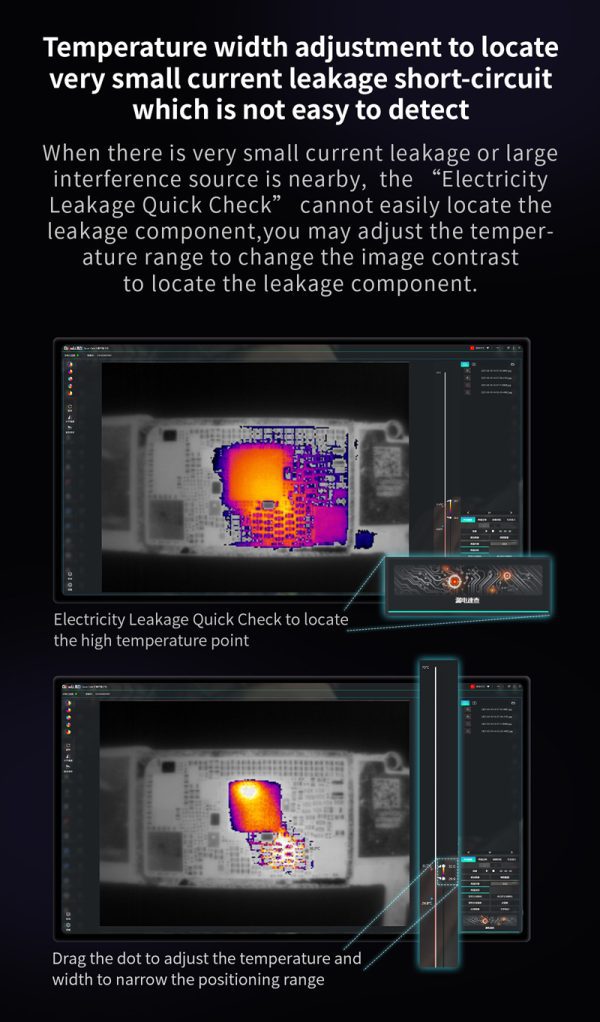

When there is a very small current leakage or a large interference source is nearby, the “Electricity Leakage Quick Check” cannot easily locate the leakage component, you may adjust the temperature range to change the image contrast to locate the leakage component

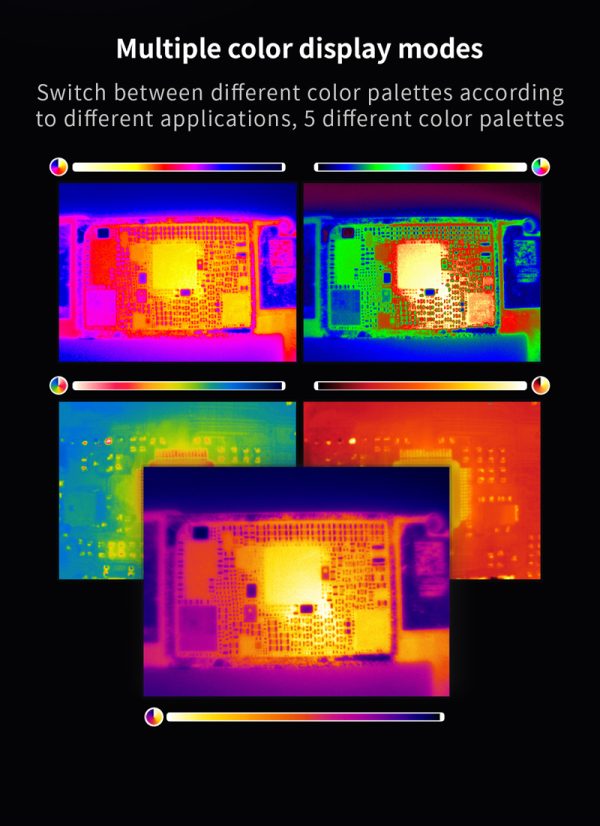

Switch between different color palettes according to different applications,5 different color palettes
Reserved 1/4 inch camera threaded hole, which can be installed on most of the standard camera brackets
Specification:
Detector Type: Uncooled Vanadium Oxide Detector
Resolution: 256×192
Wavelength Range: 8~14um
Camera Angle: 56°×42°
Frame Frequency: 25Hz
Bracket Size: 150mm×160mm×161.5mm
Weight: 435g
Installation: Removable Installation
Input Voltage: 5V DC
Power Consumption: <250mw
Display Mode: Infrared Thermal Imaging
Port Type: Type-C
Image Storage Format: JPG(640×480)
Video Storage Format: MP4
Temperature Measurement Function: Full Frame Temperature Measurement
Temperature Measurement Distance: 80~180mm
Temperature Measurement Accuracy: ±5°C or ±5%
Temperature Range: 0°C~120°C
Storage Temperature Range: -15°C~60°C
Humidity: Relative Temperature
